Ni-MH Button Cell Batteries

  • Specifications
  • Descriptive Shapes for Button Cells Assembly
  • Welding Tags Specifications
Ni-MH Button Cell Specifications
Model No. Volt Capacity  Dimensions (mm with tube) Standard Charge Standard Discharge Wt.
V mAh H Dia mA h mA g
8H 1.2 8 2.70.2 6.70.2 0.8 16 1.6 0.36
15H 1.2 15 2.70.2 9.30.2 1.5 16 3 0.65
16H 1.2 18 5.30.2 7.90.2 1.8 16 3.6 1
20H 1.2 20 3.10.2 11.60.2 2 16 4 1.7
40H 1.2 40 5.20.2 11.60.2 4 16 8 2.0
60H 1.2 60 6.10.2 15.20.2 6 16 12 3.5
80H 1.2 80 6.10.2 15.20.2 8 16 16 3.5
110H 1.2 110 7.80.2 15.20.2 11 16 22 4.4
160H 1.2 160 5.50.2 15.10.2 23.50.2 16 16 32 6.0
250H 1.2 250 6.40.2 25.20.2 25 16 50 11
350H 1.2 350 8.80.2 25.20.2 35 16 70 15
450H 1.2 400 5.60.3 24.10.3 34.10.3 40 16 80 13
Notes
  • Capacity obtained after charge at 0.1C for 16 hrs and discharge at 0.2C to 1.0V at 25oC.
  • Battery manufacturing standard according to IEC 61951-2-2001 (4.4).
Descriptive Shapes for Button Cells Assembly




Outlet Directions of Welding Tags, Leadwires or Connector









Welding Tags General Specifications
Type Image Specifications Type Image Specifications
101

Tip Width:1mm

Tip Length:4.5mm

Tip Space:10mm

103

Tip Width:1mm

Tip Length:3mmTip

Space:8mm

501

Tip Width:1mm

Tip Length:4.5mm

503

Tip Width:1mm

Tip Length:4mm

505

Tip Width:1mm

Tip Length:4mm

701

Tip Width:3mm

Tip Length:9mm

801

Tip Width:3mm

Tip Length:13mm

905

Tip Width:0.8mm

Tip Length:4mm

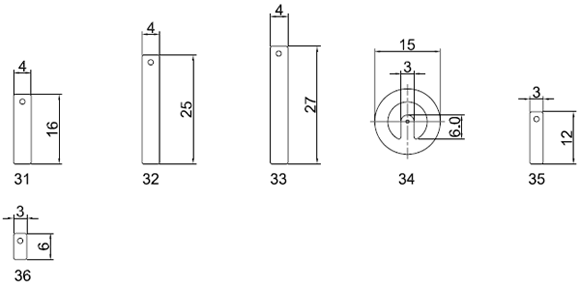

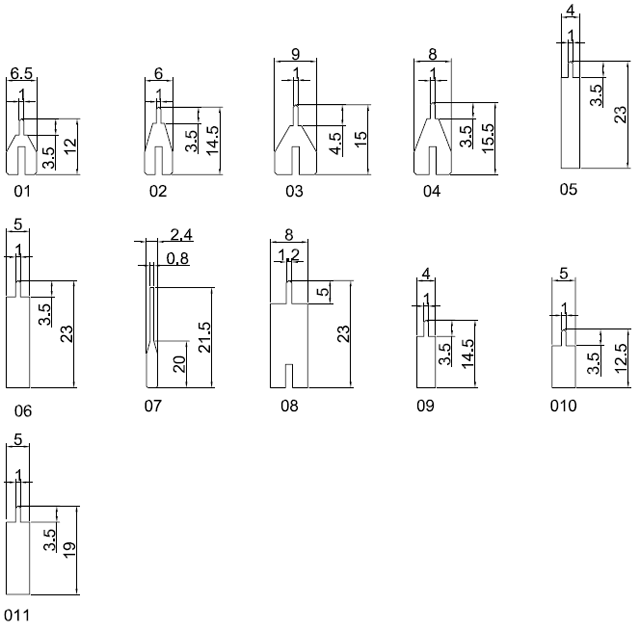

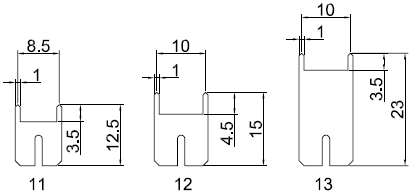

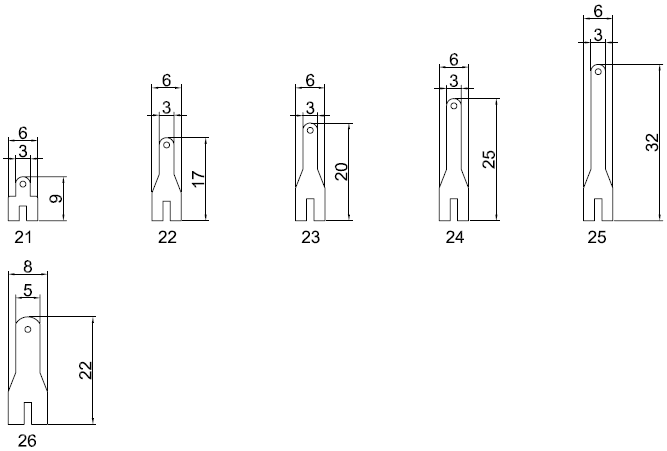

--The nickel-plated stainless sheet steel of 0.2mm thickness is applied for the following tags of
   Numbers 01-06, 08-011, 11-13, 21-26 and 31-36.
--The No. 07 welding tag is made of Ø0.8mm pure nickel material thread.

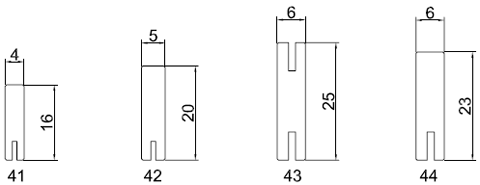

--The welding tags of Numbers 41-44 are stainless steel sheet.

--Welding tags classification:





a) "0" series







b) "1" series







c) "2" series







d) "3" series







e) "4" series
