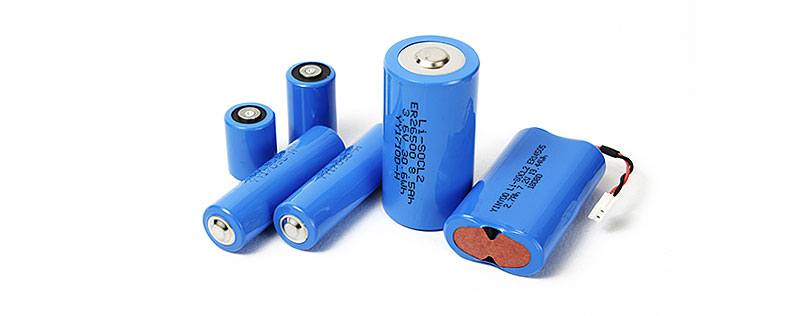

Lithium Thionyl Chloride Battery
Characteristics
- High energy density (620Wh/Kg); which is the highest among all lithium batteries.
- High open circuit voltage (3.66V for single cell), high operating voltage (varying with load, normally ranging from 3.3V to 3.6V).
- Wide range of operating temperature(-55°C~+85°C).
- Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.
- Long operating time (over 8 years) for continuous low current discharge with medium current pulses.
- Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
Application

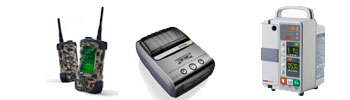

Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries.
Specifications: Bobbin Type
| International Model Size | Model Number | Max Dimension mm |
Weight g |
Nominal Voltage V |
End Voltage V |
Nominal Capacity mAh |
Max Continuous Operating Current mA |
Max Pulse Discharge Current mA |
|---|---|---|---|---|---|---|---|---|
| AAA | ER10450 | φ10.4X45.3 | 8 | 3.6 | 2.0 | 600(1mA) | 25 | 60 |
| ER11120 | φ11.5X12.0 | 2 | 3.6 | 2.0 | 100(0.2mA) | 2 | 4 | |
| ER13150 | φ13.5X15.0 | 6 | 3.6 | 2.0 | 450(0.5mA) | 10 | 30 | |
| L31 | ER13460 | φ13.5X46.0 | 14 | 3.6 | 2.0 | 1500(1mA) | 60 | 100 |
| 1/2AA | ER14250 | φ14.5X25.0 | 10 | 3.6 | 2.0 | 1200(0.5mA) | 20 | 45 |
| 2/3AA | ER14335 | φ14.5X33.5 | 13 | 3.6 | 2.0 | 1650(1.3mA) | 75 | 150 |
| AA | ER14505 | φ14.5X50.5 | 22 | 3.6 | 2.0 | 2400(2mA) | 100 | 200 |
| 2/3A | ER17335 | φ17.0X33.5 | 21 | 3.6 | 2.0 | 2100(2mA) | 100 | 200 |
| ER17505 | φ17.0X50.5 | 25 | 3.6 | 2.0 | 3400(4mA) | 120 | 200 | |
| A | ER18505 | φ18.8X50.5 | 30 | 3.6 | 2.0 | 4000(2mA) | 120 | 200 |
| C | ER26500 | φ26.2X50.0 | 53 | 3.6 | 2.0 | 8500(3mA) | 130 | 300 |
| D | ER34615 | φ34.0X61.5 | 108 | 3.6 | 2.0 | 19000(2mA) | 200 | 400 |
Specifications: Wafer Cells
| International Model Size | Model Number | Max Dimension mm |
Weight g |
Nominal Voltage V |
End Voltage V |
Nominal Capacity mAh |
Max Continuous Operating Current mA |
Max Pulse Discharge Current mA |
|---|---|---|---|---|---|---|---|---|
| 1/6D | ER32100 | φ32.9X10.0 | 25 | 3.6 | 2.0 | 1700(1mA) | 20 | 70 |
| 1/10D | ER3265 | φ32.9X6.5 | 17 | 3.6 | 2.0 | 1000(1mA) | 20 | 50 |
Specifications: Prismatic Cells
| International Model Size | Model Number | Max Dimension mm |
Weight g |
Nominal Voltage V |
End Voltage V |
Nominal Capacity mAh |
Max Continuous Operating Current mA |
Max Pulse Discharge Current mA |
|---|---|---|---|---|---|---|---|---|
| LTC-3PN | EF651615 | φ16.8X15.8X6.8 | 5 | 3.6 | 2.0 | 400(1mA) | 5 | 20 |
| LTC-7PN | EF651625 | φ16.8X25.8X6.8 | 8 | 3.6 | 2.0 | 750(1mA) | 10 | 50 |

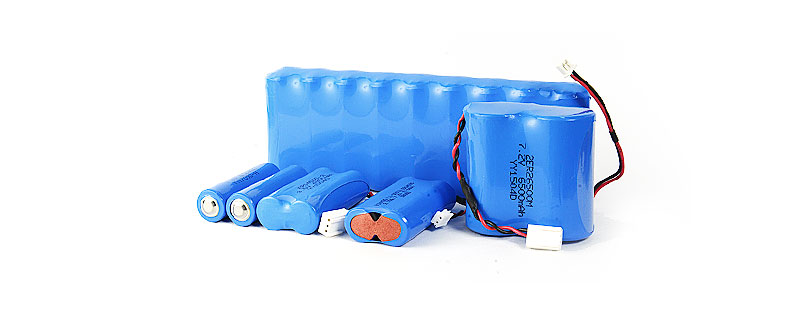

Characteristics
- High continuous discharge current and current pulses.
- High energy density, 430Wh/Kg.
- Open circuit voltage above 3.65V for single cell.
- .Wide range of operating temperature(-55°C~+85°C).
- Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
- Long operating time (over 8 years) for continuous low current discharge with high current pulses.
- Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
Application
Utility Meters, Medical Electronics, Wireless Communication, Digital Cameras, Earthquake Detectors, Digital Control Machine, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries.
Specification
| International Model Size | Model Number | Max Dimension mm |
Weight g |
Nominal Voltage V |
End Voltage V |
Nominal Capacity mAh |
Max Continuous Operating Current mA |
Max Pulse Discharge Current mA |
| 1/2AA | ER14250M | φ14.5X25.2 | 10 | 3.6 | 2.0 | 750(4mA) | 120 | 250 |
| 2/3AA | ER14335M | φ14.5X33.5 | 13 | 3.6 | 2.0 | 1200(4mA) | 300 | 500 |
| AA | ER14505M | φ14.5X50.5 | 22 | 3.6 | 2.0 | 1800(10mA) | 500 | 1000 |
| 2/3A | ER17335M | φ17.0X33.5 | 21 | 3.6 | 2.0 | 1700(5mA) | 500 | 1000 |
| A | ER18505M | φ18.8X50.5 | 30 | 3.6 | 2.0 | 3200(10mA) | 800 | 1500 |
| ER20505M | φ26.2X50.5 | 35 | 3.6 | 2.0 | 3600(10mA) | 800 | 1500 | |
| C | ER26500M | φ26.2X50.0 | 53 | 3.6 | 2.0 | 6500(10mA) | 1000 | 2000 |
| D | ER34615M | φ34.0X61.5 | 108 | 3.6 | 2.0 | 14000(10mA) | 2000 | 3000 |
