Li-ion Polymer Batteries

  • Standard Type
  • High Power Type
  • High Temp Type
  • Low Temp Type
  • Arc Battery

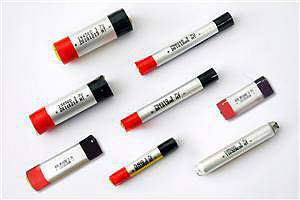

  • Cylindrical Type
Li-ion Polymer Standard Industrial Battery
Type Model No. Volt Capacity (mAh) Max Dimensions (mm) Weight
V Typical Minimal Thickness Width Length g
**1225 GLP381225 3.7 75 70 3.8 12 25 1.5
**1320 GLP 381321 3.7 70 65 3.8 13 21 2.6
**1518 GLP 751518 3.7 135 130 7.5 15 20 3.5
**1534 GLP 551534 3.7 260 250 5.5 15 34 5.2
**1636 GLP 581636 3.7 260 250 5.8 16 35 5.2
  GLP 651636 3.7 310 300 6.5 16 35 6.3
**1828 GLP 351828 3.7 170 160 3.5 18.5 28.5 3.3
  GLP 401828 3.7 150 140 4.0 18 28 3.2
**1835 GLP 701835 3.7 410 400 7.0 18 35 8.3
**1942 GLP 651942 3.7 510 500 6.5 19 42 10.4
  GLP 801942 3.7 610 600 8.0 19 42 12.5
**2025 GLP 502025 3.7 185 180 5.0 20 25 3.8
  GLP 652025 3.7 260 250 6.5 20.5 25.5 5.2
**2030 GLP 402030 3.7 190 180 4.0 20 30 3.9
  GLP 502030 3.7 240 230 5.0 20 30 4.8
  GLP 952030 3.7 510 500 9.5 20 30 10.5
**2035 GLP 502035 3.7 310 300 5.0 20 35 6.3
  GLP 702035 3.7 410 400 7.0 20 35 8.3
**2045 GLP 552045 3.7 460 450 5.5 20 44.5 9.4
**2053 GLP 702053 3.7 710 700 7.0 20 53 14.0
  GLP 102053 3.7 910 900 10.0 20 53 18.5
**2235 GLP 102235 3.7 710 700 10.0 22 35 14.0
**2444 GLP 802444 3.7 820 800 8.0 24 44 15.8
**2530 GLP 302530 3.7 175 170 3.0 25 30 4.5
  GLP 602530 3.7 390 380 6.0 25 30 7.9
**2535 GLP 372535 3.7 290 280 3.7 25 35 5.8
  GLP 502535 3.7 410 400 5.0 25.5 35.5 8.3
  GLP 752535 3.7 620 600 7.5 25.5 35.5 12.5
**2832 GLP 602832 3.7 530 520 6.0 28.5 32.5 10.8
**2856 GLP 702856 3.7 1020 1000 7.0 28 56 22.0
**29150 GLP 3529150 3.7 1070 1050 3.7 29 150 22.3
**3035 GLP 103035 3.7 1020 1000 10.0 30 35 18.7
**3040 GLP 423040 3.7 460 450 4.2 30 40 9.4
  GLP 603040 3.7 720 700 6.0 30.5 40.5 14.6
  GLP 103040 3.7 1210 1200 10.0 30 40 25.0
**3048 GLP 403048 3.7 510 500 3.8 30 48 10.5
  GLP 503048 3.7 710 700 5.0 30 48 14.6
  GLP 603048 3.7 930 900 6.1 30 48 18.8
  GLP 903048 3.7 1070 1050 9.1 30.5 48.5 22.0
**30110 GLP 7030110 3.7 2520 2500 7.0 30 110 52.1
**32116 GLP 7832116 3.7 3330 3300 7.8 32 116 69.0
**3363 GLP 553363 3.7 1220 1200 5.5 33 62 23.5
  GLP 803363 3.7 1780 1750 8.0 33 63 36.5
**3448 GLP 433449 3.7 740 730 4.4 34 48 15.2
  GLP 903448 3.7 1520 1500 9.0 34 48 29.0
**3450 GLP 303450 3.7 510 500 3.0 34 50 10.4
  GLP 453450 3.7 820 800 4.5 34.5 50.5 16.7
  GLP 503450 3.7 920 900 5.0 34.5 50.5 18.8
  GLP 553450 3.7 1010 1000 5.5 34 50 20.8
  GLP 603450 3.7 1110 1100 6.0 34 50 22.9
  GLP 723450 3.7 1370 1350 7.4 34 50 25.0
  GLP 103450 3.7 1720 1700 10 34 50 35.4
**3555 GLP 313555 3.7 670 650 3.1 35.5 55 13.5
**3680 GLP 753680 3.7 2580 2550 7.5 36 80 49.0
**3696 GLP 503696 3.7 1420 1400 4.8 36 96 29.2
  GLP 553696 3.7 1680 1650 5.5 36 96 34.4
**3755 GLP 903755 3.7 1870 1850 9.0 37 55 38.5
**3836 GLP 553837 3.7 790 780 5.6 38 36 16.3
**3857 GLP 523858 3.7 1250 1240 5.3 38 57 25.8
**3944 GLP 503946 3.7 860 850 5.0 39 46 18.0
**4040 GLP 304041 3.7 470 460 3.0 40.5 40 9.6
**4043 GLP 554043 3.7 980 970 5.5 40 43 20.2
**4050 GLP 124050 3.7 2530 2500 12 40 50 46.0
**4060 GLP 364060 3.7 810 800 3.6 40 60 16.7
  GLP 484060 3.7 1220 1200 4.8 40 60 25.0
  GLP 104060 3.7 2620 2600 10 40 60 48.5
**4065 GLP 554065 3.7 1520 1500 5.5 40 65 31.3
  GLP 754065 3.7 2200 2220 7.5 40 65 40.2
**4070 GLP 634070 3.7 2050 2000 6.3 40 70 41.7
  GLP 754070 3.7 2450 2400 7.5 40 70 50.0
  GLP 854070 3.7 2850 2800 8.5 40.5 70.5 58.3
  GLP 124070 3.7 3600 3500 11.5 40 70 72.9
**4135 GLP 534136 3.7 790 780 5.4 41 35 16.3
**4444 GLP 514445 3.7 1090 1080 5.2 44 44 22.5
**4870 GLP 754870 3.7 2980 2950 7.5 48 70 54.7
  GLP 704870 3.7 2730 2700 7.0 48 70 56.3
**5060 GLP 405060 3.7 1230 1200 4.0 50.5 60.5 25.0
  GLP 485060 3.7 1520 1500 4.8 50 60 32.0
**5070 GLP 505070 3.7 1830 1800 5.0 50 70 35.0
**50100 GLP 5050100 3.7 2530 2500 5.0 50 100 53.0
**5388 GLP 335388 3.7 1620 1600 3.3 53 88 31.4
**6070 GLP 306070 3.7 1320 1300 3.0 60 70 27.1
  GLP 366070 3.7 1680 1650 3.6 60 70 32.0
**7075 GLP 407075 3.7 2020 2000 4.0 70 75 39.0
  GLP A17075 3.7 6050 6000 11.0 70 75 125.0
**7088 GLP 407090 3.7 2630 2600 4.0 70 90 51.0
**73121 GLP 4373121 3.7 4040 4000 4.3 73 121 78.0
**7683 GLP 347685 3.7 2330 2300 3.4 76 85 43.8
**8095 GLP 458095 3.7 4020 4000 4.5 80 95 73.0
**8667 GLP 528667 3.7 3520 3500 5.2 86 67 64.5

Historically, lead-acid, nickel-cadmium (Ni-Cd), and nickel-metal hydride (Ni-MH) batteries have been the conventional choice for small-sized rechargeable batteries. In line with the recent trends toward mobile and cordless electronic equipment, rechargeable batteries are required to provide higher energy density to meet the needs of ever smaller and lighter devices. Moreover, the attention being focused on protecting the environment has resulted in demand for products that are environmentally friendly.

Features

  • High Energy Density
  • The weight of a lithium ion battery is approximately one half compared to a nickel-cadmium or nickel-metal hydride battery of similar capacity. Moreover, the volume of the lithium ion battery is 40 to 50% smaller than that of a nickel-cadmium and 20 to 30% smaller than that of a nickel-metal hydride battery.
  • High Voltage
    A single lithium ion cell has a voltage of 3.7V (mean value), which is equal to either three nickel-cadmium or nickel-metal hydride cells connected in series.
  • Good safety performance
    As the aluminum bluster outer package is different from the meta shell of liquid lithium ion battery, and once safety problems arise, there is no explosion but only expansion.
  • Pollution-free
    The lithium ion battery does not contain any polluting substances such as cadmium, lead, mercury, etc.
  • Various capacities and sizes
    various capacities and sizes and can be customized for capacity of 40mAh~20Ah and thickness of 0.8mm~10mm.
  • Long Cycle Life
    Under normal conditions, the lithium ion battery has a life of more than 500 charge/discharge cycles.
  • No Memory Effect
    The lithium ion battery is free from the so-called memory effect, a phenomenon seen in nickel-cadmium in which the apparent battery capacity decreases when shallow charge and discharge cycles are repeated.
  • Fast Charge Capacity
    The lithium ion battery can be fully charged in 1 to 2 hours, using a constant-current / constant-voltage (CC/CV) type dedicated charger with a rated voltage of 4.2V per cell.



 Applications

The rechargeable lithium ion battery shows great promise as a battery to meet such requirement. This new battery technology has excellent features, such as: high energy density, high voltage, good storage and cycle life characteristics. These batteries are widely used for 3C applications such as: Personal Computers, Cellular Phones, and for personal cordless electronic applications i.e. Portable CD Players, PDA etc.

High Power Li-Polymer Battery Specifications
Model
NO
Nominal
Capacity
(mAh)
Voltage
(V)
Dimension Approx
Weight
(g)
Max Discharge Current
T
±0.2
mm
W
±0.
5mm
L
±1.
0mm
Continuous
Discharge
Current
Burst
Discharge
Current
Cut-off
Voltage
GLP6036105P 2300 3.7 6.0 36 105 54.0 8C 20C 2.75V
GLP 7243128P 3850 3.7 7.2 43 128 90.0 8C 20C 2.75V
GLP 9574135P 10000 3.7 9.5 74 135 230.0 8C 20C 2.75V

GLP 401218P 30 3.7 4.0 12 18 1.1 12C 25C 2.75V
GLP 451417P 50 3.7 5.0 14 17 1.6 12C 25C 2.75V
GLP 501218P 50 3.7 5.0 12 18 1.6 12C 25C 2.75V
GLP 501417P 60 3.7 5.0 14 17 1.8 12C 25C 2.75V
GLP 601417P 70 3.7 6.0 14 17 2.0 12C 25C 2.75V
GLP 651417P 85 3.7 6.5 14 17 2.4 12C 25C 2.75V
GLP 601717P 85 3.7 6.0 17 17 2.4 12C 25C 2.75V
GLP 701717P 100 3.7 7.0 17 17 2.8 12C 25C 2.75V
GLP 431528P 100 3.7 4.3 15 28 2.8 12C 25C 2.75V
GLP 551522P 100 3.7 6.0 15 22 2.8 12C 25C 2.75V
GLP 501721P 110 3.7 5.0 17 21 3.0 12C 25C 2.75V
GLP 551230P 130 3.7 5.5 12 30 3.5 12C 25C 2.75V
GLP 382030P 135 3.7 3.8 20 30 3.5 12C 25C 2.75V
GLP 601721P 150 3.7 6.0 17 21 3.6 12C 25C 2.75V
GLP 502025P 150 3.7 5.0 20 25 4.5 12C 25C 2.75V
GLP 452030P 180 3.7 4.5 20 30 6.8 12C 25C 2.75V
GLP 532030P 200 3.7 5.3 20 30 7.0 12C 25C 2.75V
GLP 652025P 220 3.7 7.0 20 25 7.0 12C 25C 2.75V
GLP 552036P 280 3.7 5.5 20 36 8.0 12C 25C 2.75V
GLP 702035P 350 3.7 6.5 20 36 8.7 12C 25C 2.75V
GLP 652240P 400 3.7 6.5 22 40 10.0 12C 25C 2.75V
GLP 383048P 450 3.7 3.8 30 48 13.0 12C 25C 2.75V
GLP 752535P 450 3.7 7.5 25 35 13.0 12C 25C 2.75V
GLP 902530P 500 3.7 9.0 25 30 14.0 12C 25C 2.75V
GLP 553046P 600 3.7 5.5 30 46 16.0 12C 25C 2.75V
GLP 403362P 620 3.7 4.0 33 62 17.0 12C 25C 2.75V
GLP 683048P 800 3.7 6.8 30 48 19.0 12C 25C 2.75V
GLP 683048P 800 3.7 6.8 30 48 21.0 12C 25C 2.75V
GLP 403090P 1000 3.7 4.0 30 90 25.0 12C 25C 2.75
GLP 823048P 1000 3.7 8.2 30 48 25.0 12C 25C 2.75V
GLP 533562P 1000 3.7 5.3 35 62 25.0 12C 25C 2.75V
GLP 743255P 1100 3.7 7.4 32 55 28.0 12C 25C 2.75V
GLP 953048P 1100 3.7 9.9 30 48 29.5 12C 25C 2.75V
GLP 533090P 1300 3.7 5.3 30 90 30.5 12C 25C 2.75V
GLP 683562P 1300 3.7 6.8 35 62 30.5 12C 25C 2.75V
GLP 5517170P 1300 3.7 5.5 17 170 30.5 12C 25C 2.75V
GLP 6220120P 1300 3.7 5.5 20 120 30.5 12C 25C 2.75V
GLP 803562P 1500 3.7 8.0 35 62 35.0 12C 25C 2.75V

GLP 533048HP 600 3.7 5.3 30 48 16.0 15C 30C 2.75V
GLP 602562HP 800 3.7 6.0 25 62 20.0 15C 30C 2.75V
GLP 723048HP 850 3.7 7.2 30 48 20.5 15C 30C 2.75V
GLP 483562HP 850 3.7 4.8 35 62 20.5 15C 30C 2.75V
GLP 743048HP 900 3.7 7.4 30 48 22.0 15C 30C 2.75V
GLP 563562HP 1000 3.7 5.6 35 62 26.0 15C 30C 2.75V
GLP 503090HP 1200 3.7 5.0 30 90 29.0 15C 30C 2.75V
GLP 6020120HP 1200 3.7 6.0 20 120 29.0 15C 30C 2.75V
GLP 703562HP 1300 3.7 7.0 35 62 31.3 15C 30C 2.75V
GLP 554269HP 1400 3.7 5.5 42 69 33.0 15C 30C 2.75V
GLP 643480HP 1500 3.7 6.0 34 80 35.0 15C 30C 2.75V
GLP 763080HP 1500 3.7 7.6 30 80 36.0 15C 30C 2.75V
GLP 663090HP 1600 3.7 6.6 30 90 38.0 15C 30C 2.75V
GLP 754258HP 1600 3.7 7.5 42 58 38.0 15C 30C 2.75V
GLP 703480HP 1700 3.7 7.0 34 80 39.0 15C 30C 2.75V
GLP 603496HP 1800 3.7 6.0 34 96 42.0 15C 30C 2.75V
GLP 653296HP 1800 3.7 6.5 32 96 42.0 15C 30C 2.75V
GLP 853080HP 1800 3.7 8.5 30 80 43.0 15C 30C 2.75V
GLP 903467HP 1800 3.7 9.0 34 67 43.0 15C 30C 2.75V
GLP 723090HP 1900 3.7 7.2 30 90 44.0 15C 30C 2.75V
GLP 683496HP 2000 3.7 6.8 34 96 46.0 15C 30C 2.75V
GLP 903480HP 2200 3.7 9.0 34 80 50.0 15C 30C 2.75V
GLP 723496HP 2200 3.7 7.2 34 96 51.0 15C 30C 2.75V
GLP 724285HP 2400 3.7 7.2 42 85 63.0 15C 30C 2.75V
GLP 5061100HP 3000 3.7 5.0 61 100 74.0 15C 30C 2.75V
GLP 5048135HP 3100 3.7 5.0 48 135 82.0 15C 30C 2.75V
GLP 745690HP 3550 3.7 7.4 56 90 83.0 15C 30C 2.75V
GLP 8243150HP 4800 3.7 8.2 43 150 124.0 15C 30C 2.75V
GLP 8543150HP 5000 3.7 8.5 43 150 125.0 15C 30C 2.75V

GLP 552036SP 250 3.7 5.5 20 36 7.5 25C 50C 2.75V
GLP 383048SP 360 3.7 3.8 30 48 10.0 25C 50C 2.75V
GLP 453048SP 450 3.7 4.5 30 48 12.0 25C 50C 2.75V
GLP 603048SP 600 3.7 6.0 30 48 15.0 25C 50C 2.75V
GLP 783048SP 850 3.7 7.8 30 48 25.0 25C 50C 2.75V
GLP 6043128SP 2800 3.7 6.0 43 128 72.0 25C 50C 2.75V
GLP 6843128SP 3200 3.7 6.8 43 128 84.0 25C 50C 2.75V
GLP 7645100SP 3000 3.7 7.6 45 100 78.0 25C 30C 2.75V
GLP 7642125SP 3200 3.7 7.6 42 125 80.0 25C 50C 2.75V
GLP 7043128SP 3400 3.7 7.0 43 128 90.0 25C 30C 2.75V
GLP 7643128SP 3600 3.7 7.6 43 128 90.0 25C 50C 2.75V
GLP 8243128SP 4000 3.7 8.2 43 128 103.0 25C 50C 2.75V
GLP 8043150SP 4500 3.7 8.0 43 150 115.0 25C 50C 2.75V
GLP 9545135SP 5000 3.7 9.5 45 135 125.0 25C 50C 2.75V

GLP 743255SP 1000 3.7 7.4 32 55 28.0 30C 60C 2.75V
GLP 553480SP 1200 3.7 5.5 34 80 31.0 30C 60C 2.75V
GLP 753562SP 1300 3.7 7.5 35 62 33.0 30C 60C 2.75V
GLP 683480SP 1500 3.7 6.8 34 80 40.0 30C 60C 2.75V
GLP 783480SP 1700 3.7 7.8 34 80 45.0 30C 60C 2.75V
GLP 803480SP 1800 3.7 8.0 34 80 48.0 30C 60C 2.75V
GLP 683496SP 1800 3.7 6.8 34 96 48.0 30C 60C 2.75V
GLP 703592SP 1900 3.7 7.0 35 92 50.0 30C 60C 2.75V
GLP 783296SP 2000 3.7 7.8 32 96 51.0 30C 60C 2.75V
GLP 723496SP 2000 3.7 7.2 34 96 51.0 30C 60C 2.75V
GLP 753496SP 2100 3.7 7.5 34 96 53.0 30C 60C 2.75V
GLP 783496SP 2200 3.7 7.8 34 96 55.0 30C 60C 2.75V
GLP 7245135SP 3600 3.7 7.2 45 135 91.0 30C 60C 2.75V
GLP 8245135SP 4000 3.7 8.2 45 135 100.0 30C 60C 2.75V
GLP 8545180SP 6000 3.7 8.5 45 180 160.0 30C 60C 2.75V

GLP 453562XP 740 3.7 4.5 35 62 19.0 35C 70C 2.75V
GLP 603562XP 1000 3.7 6.0 35 62 28.0 35C 70C 2.75V
GLP 4843128XP 2000 3.7 4.8 43 128 51.0 35C 70C 2.75V
GLP 7834106XP 2200 3.7 7.8 34 106 56.0 35C 70C 2.75V
GLP 5043128XP 2300 3.7 5.0 43 128 60.0 35C 70C 2.75V
GLP 5542125XP 2500 3.7 5.5 42 125 64.0 35C 70C 2.75V
GLP 5543128XP 2500 3.7 5.5 43 128 65.0 35C 70C 2.75V
GLP 6545135XP 3200 3.7 6.5 45 135 81.0 35C 70C 2.75V
GLP 7543150XP 4000 3.7 7.5 43 150 102.0 35C 70C 2.75V

Economy Product Line
* cycle life: batteries packs retains 80% of capacity after 100 cycles;
* scharge working temperature is ≤75℃;
* High voltage at High C-rate discharge, median voltage stays above 3.3V;

Uper High-performance Line
* Super Power: Can be continuously discharged at 15C~30C,burst discharged at 30C~60C;
* Super low discharge temperature:20C continue discharge temperature will not exceed 65℃;
* Super light weight:3200 mah 20C 3.7V only 80g;
* Super long cycle life: battery packs maintain ≥80% capacity after 150 cycles;
Super Light Toy’s Li-polymer Battery Series above
* Superior design, allows you to create smaller and lighter products;
* Innovative light weight technology, with a 10% power/weight ratio improvement ;
* Excellent discharge performance, discharge median voltage above 3.3V, can be discharged at 15C-20C;
* Innovative design, meeting different customers ’requirements and different needs of design;
High Temperature Li-Polymer Battery Series
Model
NO
Nominal
Capacity
(mAh)
Voltage
(V)
Dimension Approx
Weight
(g)
Internal
Resistance
(mΩ)
Max Discharge Current
T
±0.2
mm
W
±0.
5mm
L
±1.
0mm
Continuous
Discharge
Current
Burst
Discharge
Current
Cut-off
Voltage
SDL503048 700 3.7 5 30 48 14 120 1C 2C 2.75V
SDL603450 1100 3.7 6 34 50 20 60 1C 2C 2.75V
SDL903048 1500 3.7 9 30 48 30 40 1C 2C 2.75V
SDL853080 2200 3.7 8.5 30 80 44 20 1C 2C 2.75V
SDL703090 2200 3.7 7 30 90 44 20 1C 2C 2.75V
SDL803090 2400 3.7 8 30 90 47 18 1C 2C 2.75V
SDL7543128 5000 3.7 7.5 43 128 100 8 1C 2C 2.75V
High Temperature Battery Series
* The full charged battery under temperature of 90℃ no swelling effect in 24 hours;
* The full charged battery under temperature of 85℃ no swelling effect in 48 hours;
* Long cycle life: up to 500 cycles;
* Custom size and shape can be made by client request;
* Many applications: GPS GSM, and other high-temperature environment requirements.
Low Temperature Li-Polymer Battery Series
Model Voltage (V) Capacity (mAh) Size(mm) Weight
(g)
Rate Discharge
Capacity@
0.5C/-20℃
Thickness
(±0.3)
Width
(±0.5)
Height
(±0.5)
Charge Discharge
401129LT2 3.7 80 4.1 12.0 30.0 2.0 0.5~1C 0.5~2C ≥75%
651221LT2 3.7 95 5.8 12.0 21.5 2.2 0.5~1C 0.5~2C ≥75%
501230LT2 3.7 120 5.4 12.0 30.0 2.8 0.5~1C 0.5~2C ≥75%
431233LT2 3.7 125 4.3 12.0 32.0 2.5 0.5~1C 0.5~2C ≥75%
451824LT2 3.7 130 4.7 12.5 47.0 2.8 0.5~1C 0.5~2C ≥75%
431335LT2 3.7 150 4.5 19.0 35.5 3.2 0.5~1C 0.5~2C ≥75%
431433LT2 3.7 155 4.5 13.5 32.0 3.5 0.5~1C 0.5~2C ≥75%
521233LT2 3.7 160 5.4 14.5 32.0 3.5 0.5~1C 0.5~2C ≥75%
402424LT2 3.7 200 4.3 12.5 24.0 4.0 0.5~1C 0.5~2C ≥75%
402436LT2 3.7 240 4.2 25.0 36.0 6.5 0.5~1C 0.5~1C ≥75%
502030LT2 3.7 250 5.3 24.3 31.0 5.0 0.5~1C 0.5~2C ≥75%
402537LT2 3.7 300 4.0 22.0 37.0 6.5 0.5~1C 0.5~2C ≥75%
402929LT2 3.7 300 4.5 27.255 28.5 6.5 0.5~1C 0.5~2C ≥75%
452040LT2 3.7 330 5.0 21 41.5 6.5 0.5~1C 0.5~2C ≥75%
904265LT2 3.7 2500 9.0 42.0 67.0 53 0.5~1C 0.5~2C ≥75%
  • At -20℃ 0.5C discharge capacity ≥ 80% of original capacity;
  • At -30℃ 0.5C discharge capacity ≥ 50% of original capacity;
  • Long cycle life: up to 500 cycles;
  • Excellent high-current discharge performance, single cell 2C discharge capacity up to 90% ;
Li-Polymer Arc battery

Li-Polymer Arc batteryArc battery, curved battery, or flexible battery, reasonable shape design that could use the space of container efficiently, two types available, namely 3.7V and 3.2V. Apply to many wearable device, such as Medical Devices, Wrist Devices and Headset Devices. It also can be customized such as radian, dimension and capacity





Ni-MH Cylindrical: Low self-discharge battery (LS)
Model Nominal
Voltage
(V)
Internal
Resistance
(Max mΩ)
Capacity
(mAh)
Cell Size(mm) Charge
Rate
Discharge
Rate
Weight
(g)
Diameter
(±0.3)
Height
(±0.5)
04380 3.7 260 28 4.9 38.6 0.5C-2C 0.2C-2.5C 1
04480 3.7 340 42 5.0 50.0 0.5C-2C 0.5C-4C 1.3
05300 3.7 550 40 5.8 33.0 0.5C-1C 0.5C-1C 1.2
06220 3.7 500 40 6.5 25 0.5C-1C 0.5C-1C 3.5
07350 3.7 300 80 7 37.5 0.5C-1C 0.5C-1C 2.8
75530 3.7 80 210 7.5 54 0.5C-2C 3C-10C 4.5
75520 3.7 120 210 7.6 53 0.5C-1C 0.5C-7C 6

Polymer Cylindrical

Introduce:
Range of applications: electronic cigarette, LED flashlights, point of time T. Small Diameter and Volume;Lightweight, High Energy Density;Excellent safety ,No explosion; Good performance at a discharge rate of 5C-15C;High capacity, long cycle life.



Advantage:
1、Small Diameter and Volume;
2、Lightweight, High Energy Density;
3、Excellent safety, No explosion;
4、Good performance at a discharge rate of 5C-15C;
5、High capacity, long cycle life (200cycles at 5C discharge, preserved capacity≧80%)



Application:
Cylindrical lithium polymer battery features light weight, large capacity, high-rate discharge, 6 minutes fast charged 95% capacity, high safety etc. It’s applied to some oncoming fields, such as electric cigarette, electric toothbrush, electronic toothbrush medical equipment and so on.
