Polymer PTC Resettable Fuses
Safety approved and Global insurance
PTC resettable fuses rated working voltage is 24V, 16V, etc., to maintain the current nominal 70mA-14A. Resettable fuse this series suitable for nickel-hydrogen batteries and lithium batteries. With a small, non-operating current, short response time, low resistance, high reliability, easy installation, can be used repeatedly and so on. And have some over-temperature protection, so that the battery is not abnormal operating temperature is too high, especially suitable for Li-ion and nickel-metal hydride and other more sensitive to temperature secondary (rechargeable) batteries.

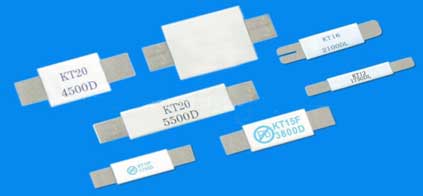

Appearance of Products
Electrical characteristics (25℃)
| Model | I H (A) |
I T (A) |
I trip | V max (V) |
I max (A) |
R min ( mΩ ) |
R max (m Ω ) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current(A) | Time(s) | ||||||||||||||||
| JK-P070 | 0.70 | 1.45 | 3.5 | 5.0 | 16 | 100 | 100 | 200 | |||||||||
| JK-P100 | 1.00 | 2.50 | 5.0 | 5.0 | 16 | 100 | 70 | 130 | |||||||||
| JK-P120 | 1.20 | 2.70 | 6.0 | 5.0 | 16 | 100 | 60 | 120 | |||||||||
| JK-P175 | 1.75 | 3.80 | 8.5 | 5.0 | 16 | 100 | 30 | 65 | |||||||||
| JK-P180 | 1.80 | 3.80 | 9.0 | 5.0 | 16 | 100 | 30 | 60 | |||||||||
| JK-P190 | 1.90 | 4.20 | 9.5 | 5.0 | 16 | 100 | 25 | 45 | |||||||||
| JK-P200 | 2.00 | 4.40 | 10.0 | 5.0 | 16 | 100 | 20 | 40 | |||||||||
| JK-P210 | 2.10 | 4.40 | 10.5 | 5.0 | 16 | 100 | 20 | 35 | |||||||||
| JK-P260 | 2.60 | 5.20 | 13.0 | 5.0 | 16 | 100 | 15 | 30 | |||||||||
| JK-P300 | 3.00 | 6.00 | 15.0 | 5.0 | 24 | 100 | 15 | 31 | |||||||||
| JK-P350 | 3.50 | 7.00 | 17.5 | 5.0 | 24 | 100 | 17 | 31 | |||||||||
| JK-P380 | 3.80 | 7.60 | 19.0 | 5.0 | 24 | 100 | 13 | 26 | |||||||||
| JK-P420 | 4.20 | 8.30 | 21.0 | 5.0 | 24 | 100 | 12 | 24 | |||||||||
| JK-P450 | 4.50 | 9.00 | 22.5 | 5.0 | 20 | 100 | 11 | 20 | |||||||||
| JK-P550 | 5.50 | 10.50 | 27.5 | 5.0 | 20 | 100 | 9 | 16 | |||||||||
| JK-P600 | 6.60 | 11.70 | 30.0 | 5.0 | 20 | 100 | 7 | 14 | |||||||||
| JK-P730 | 7.30 | 14.1 | 30.0 | 5.0 | 20 | 100 | 6 | 12 | |||||||||
| JK-P900 | 9.00 | 16.70 | 45.0 | 5.0 | 20 | 100 | 6 | 10 | |||||||||
| JK-P1410 | 14.10 | 26.20 | 70.0 | 5.0 | 20 | 100 | 3 | 5 | |||||||||
| JK-D170 | 1.70 | 3.40 | 8.5 | 5.0 | 12 | 100 | 30 | 52 | |||||||||
| JK-D175 | 1.75 | 3.80 | 8.75 | 5.0 | 12 | 100 | 29 | 51 | |||||||||
| JK-D200 | 2.00 | 4.50 | 10.0 | 5.0 | 12 | 100 | 20 | 40 | |||||||||
| JK-D210 | 2.10 | 4.70 | 10.5 | 5.0 | 12 | 100 | 18 | 30 | |||||||||
- Holding current (IH): 25 ℃ still air environment without triggering the highest current PPTC resettable fuse sudden and Vietnam.
- Trigger Current (IT): 25 ℃ still air environment PPTC resettable fuse into a minimum current from a low impedance high impedance.
- The maximum voltage (V max): PPTC resettable fuse can withstand the maximum working voltage.
- The maximum current (I max): P35-fold PTC resettable fuse can withstand the maximum current.
- Action time (T trip): maximum operating time specified current.
- Action Power (Pd typ): 25 ℃ ambient temperature when the power consumption PPTC resettable fuse action state.
Minimum resistance (R min): The minimum temperature 25 ℃ under zero-power resistance. - Maximum resistance (R max): under 25 ℃ temperature conditions the maximum zero-power resistance.
Product dimensions(mm)
| Model | A | B | C | D | E | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |||||||
| JK-P070 | 17.0 | 20.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.2 | 3.8 | 4.2 | ||||||
| JK-P100 | 17.0 | 20.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.2 | 3.8 | 4.2 | ||||||
| JK-P120 | 17.0 | 20.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.2 | 3.8 | 4.2 | ||||||
| JK-P175 | 20.9 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 2.8 | 3.2 | ||||||
| JK-P180 | 20.9 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 2.8 | 3.2 | ||||||
| JK-P190 | 20.9 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 2.8 | 3.2 | ||||||
| JK-P200 | 20.9 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 2.8 | 3.2 | ||||||
| JK-P210 | 20.9 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 2.8 | 3.2 | ||||||
| JK-P260 | 20.9 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 2.8 | 3.2 | ||||||
| JK-P300 | 24.0 | 27.5 | 6.9 | 7.5 | 0.6 | 1.0 | 4.0 | 7.5 | 4.8 | 5.2 | ||||||
| JK-P350 | 24.0 | 27.5 | 6.9 | 7.5 | 0.6 | 1.0 | 4.0 | 7.5 | 4.8 | 5.2 | ||||||
| JK-P380 | 24.0 | 27.5 | 6.9 | 7.5 | 0.6 | 1.0 | 4.0 | 7.5 | 4.8 | 5.2 | ||||||
| JK-P420 | 24.0 | 27.5 | 9.8 | 10.5 | 0.6 | 1.0 | 4.0 | 7.5 | 4.8 | 5.2 | ||||||
| JK-P450 | 24.0 | 27.5 | 9.8 | 10.5 | 0.6 | 1.0 | 4.0 | 7.5 | 4.8 | 5.2 | ||||||
| JK-P550 | 24.0 | 27.5 | 9.8 | 10.5 | 0.6 | 1.0 | 4.0 | 7.5 | 4.8 | 5.2 | ||||||
| JK-P600 | 24.0 | 26.0 | 13.9 | 14.5 | 0.6 | 1.0 | 4.1 | 5.5 | 5.9 | 6.1 | ||||||
| JK-P730 | 27.1 | 29.1 | 13.9 | 14.5 | 0.6 | 1.0 | 4.1 | 5.5 | 5.9 | 6.1 | ||||||
| JK-P900 | 45.0 | 48.0 | 7.9 | 8.5 | 0.6 | 1.0 | 4.0 | 7.0 | 5.9 | 6.1 | ||||||
| JK-P1410 | 58.0 | 60.0 | 13.4 | 14.0 | 0.6 | 1.0 | 5.0 | 7.0 | 5.9 | 6.1 | ||||||
| JK-D170 | 15.4 | 17.5 | 6.9 | 7.4 | 0.6 | 1.0 | 5.0 | 6.2 | 3.8 | 4.2 | ||||||
| JK-D175 | 21.9 | 24.5 | 3.0 | 3.6 | 0.6 | 1.0 | 4.5 | 5.5 | 2.3 | 3.2 | ||||||
| JK-D200 | 21.9 | 24.5 | 3.0 | 3.6 | 0.6 | 1.0 | 4.5 | 5.5 | 2.3 | 3.2 | ||||||
| JK-D210 | 21.9 | 24.5 | 3.0 | 3.6 | 0.6 | 1.0 | 4.5 | 5.5 | 2.3 | 3.2 | ||||||
